HE车辆分离光栅

    Vehicle separation grating

产品详情

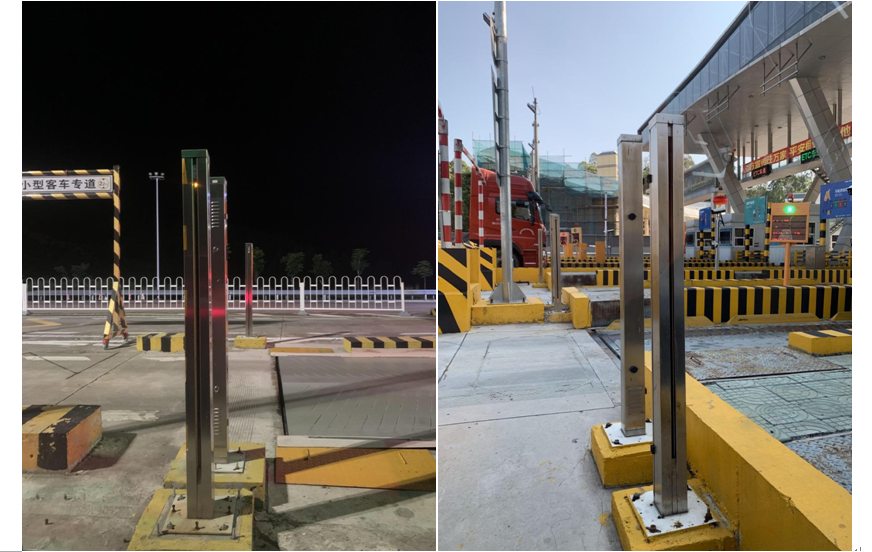

HE车辆分离光栅是一款专门应用在高速公路收费站上实现无人工收费,加装坚固的外壳,防水、防尘还具备调温功效,不受高温或是低温的影响,在恶劣的环境一样可以稳定、有效的工作。

HE vehicle separation grating is a special application in highway toll without artificial charges, equipped with solid shell, waterproof, dustproof also has temperature adjustment effect, not affected by high or low temperatures, in the harsh environment can work stable and effective.

产品特点Product features:

1.超长检测距离且易于对准;

2.用于高精度的检测和测量,测量精度高,范围广,间距最密可达1.5MM;

3.具备RS485或RS232通讯功能,采用标准MODBUS协议与上位机进行通讯;

4.模拟量输出0~5V/0~10V/4~20mA;

5.具有防水调温外壳;

6.防低温耐高温;

7.抗电磁、光干扰能力强;

8.配合上位机配置软件,应用各种工业场所;

9.光束可屏蔽功能,使用更加便捷,具有暂停功能和遮光记录保持功能,测量更加智能;

1. Long detection distance and easy alignment;

2. It is used for high-precision detection and measurement, with high measurement accuracy, wide range and the most dense spacing up to 1.5mm;

3. With RS485 and RS232 communication function, using the standard MODBUS protocol to communicate with the upper machine;

4. Analog 0 ~ 5 v / 0 ~ 10 v / 4 ~ 20 ma;

5. a waterproof thermal control shell;

6. Low temperature resistant to high temperature;

7.Strong anti electromagnetic and optical interference ability;

8.Cooperate with the host computer to configure software and apply it to various industrial places;

9.The beam can be shielded, which is more convenient to use, with pause function and shading record holding function, and the measurement is more intelligent;
